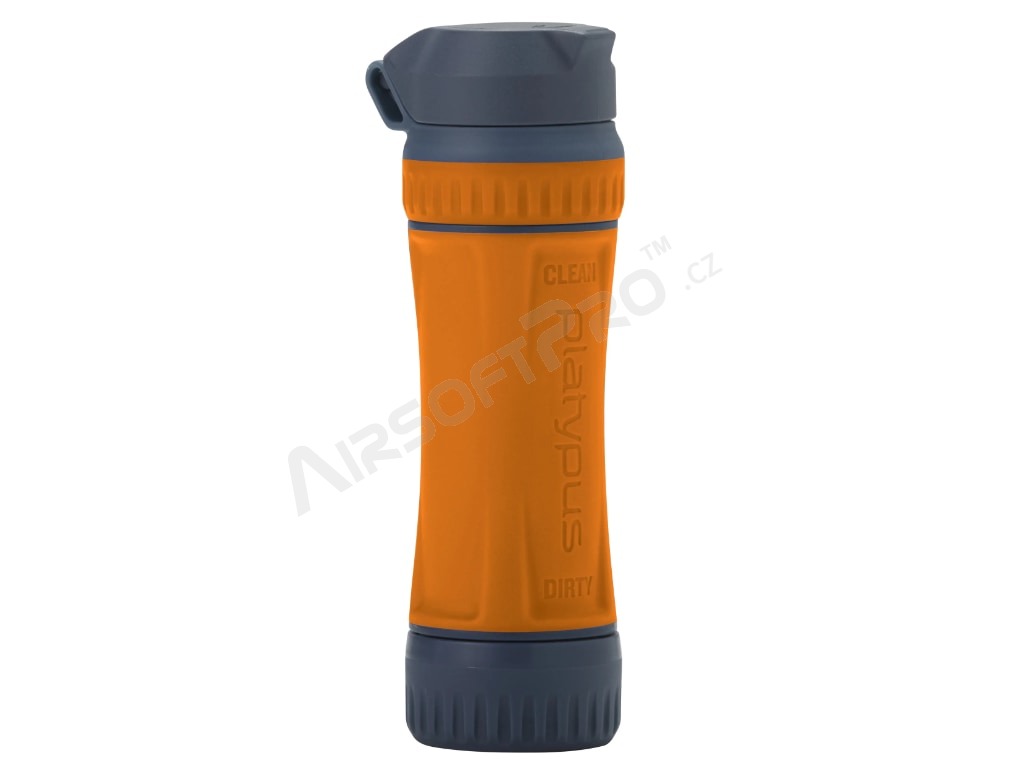

Inline water filter QuickDraw™ - Orange
Universal QuickDraw filter for quick water filtering in the field.
Hollow fiber technology allows the QuickDraw to filter water fast (3 l/m) while remaining compact and ultralight (70 g). It’s designed to work seamlessly with a wide range of bottles and reservoirs, empowering you to assemble a filter system tailored to your preferences.

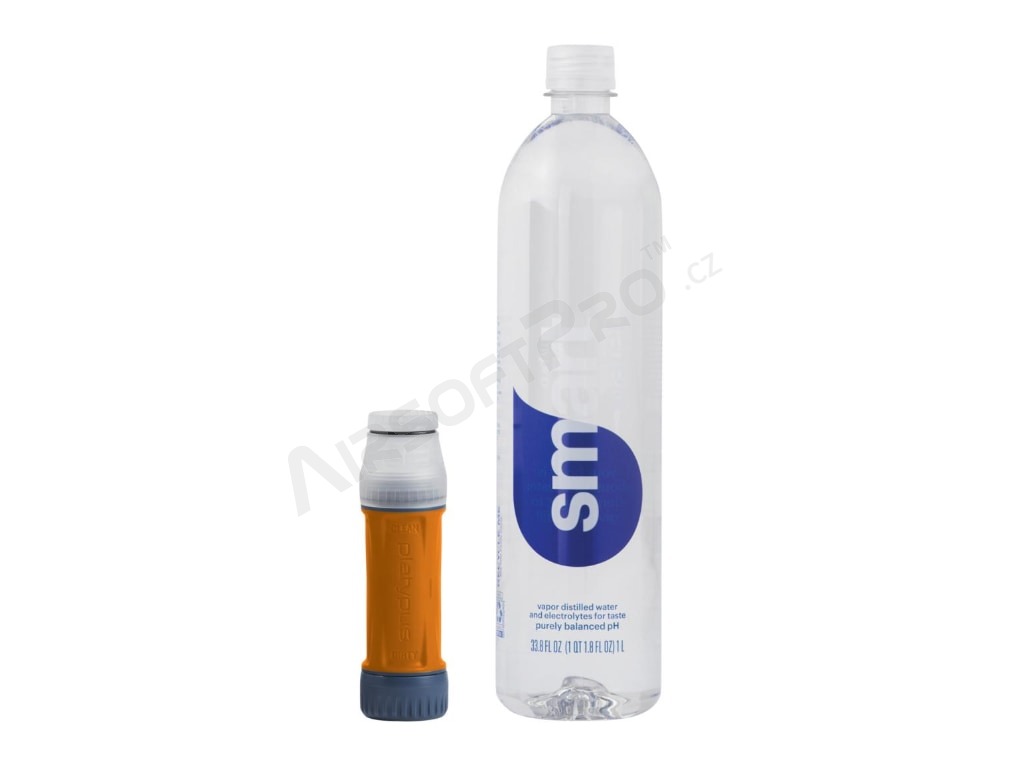

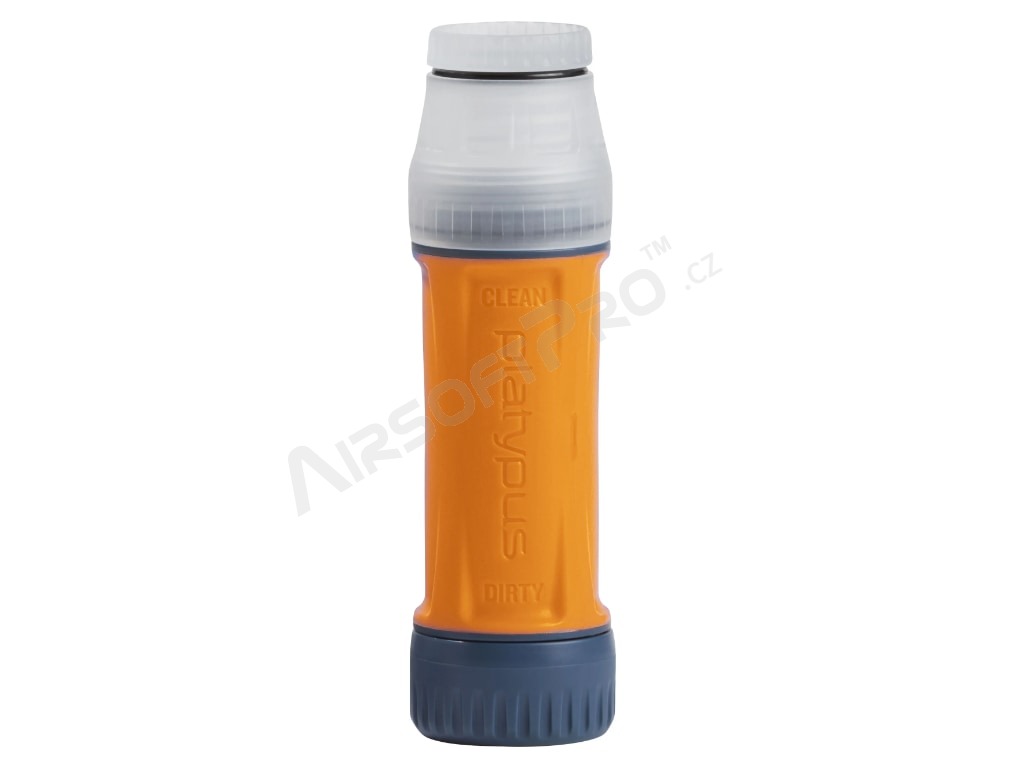

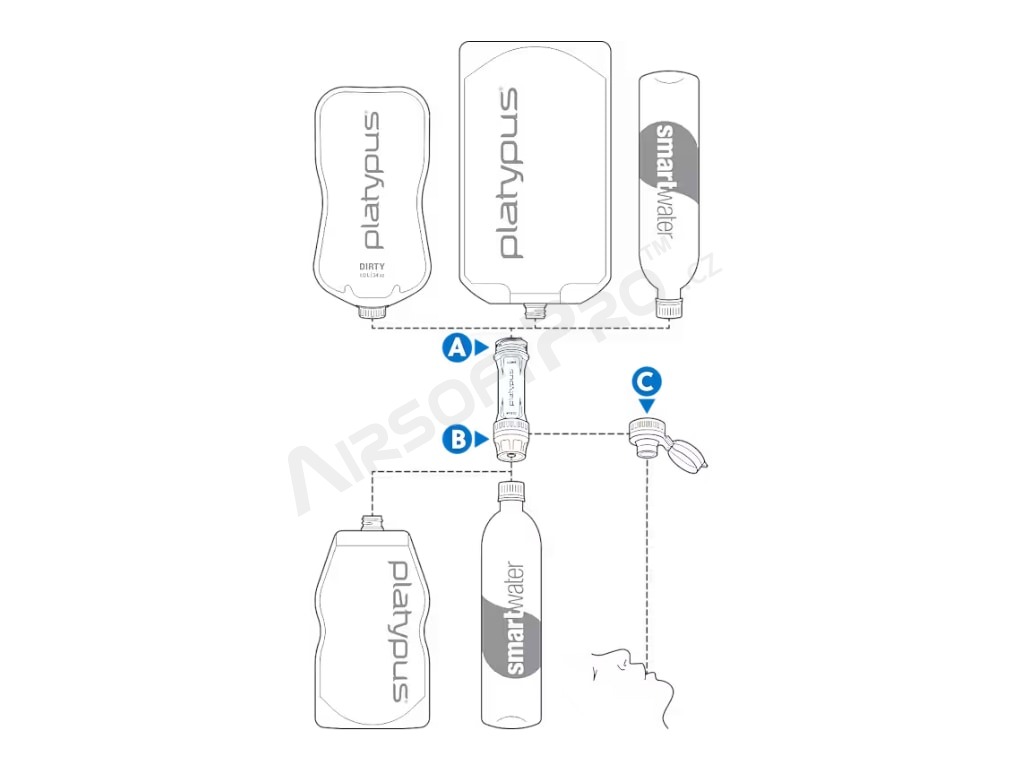

The dirty side I/O (inner/outer) threads attach to QuickDraw reservoirs as well as common narrow-mouth bottles like Smartwater® and most Platy bottles. On the clean side, select between the DrinkCap for drinking and pouring and the ConnectCap™ that attaches to narrow-mouth bottles.
The filter is built to be safe, effortless, and long-lasting. Two cleaning methods — shake-to-clean and backflushing—keep the filter flowing fast throughout your trip, while the Integrity Check process allows you to ensure it’s still safely filtering water.
Combine & Customize
- I/O dual threads and the ConnectCap™ let you dial in your custom leak-free system using the clean and dirty vessels you prefer, like smartwater® bottles and Platy bottles.
Ultralight & Compact
- Filter weighs just 69 g and can fit in your pants pocket.
Fast Flowing

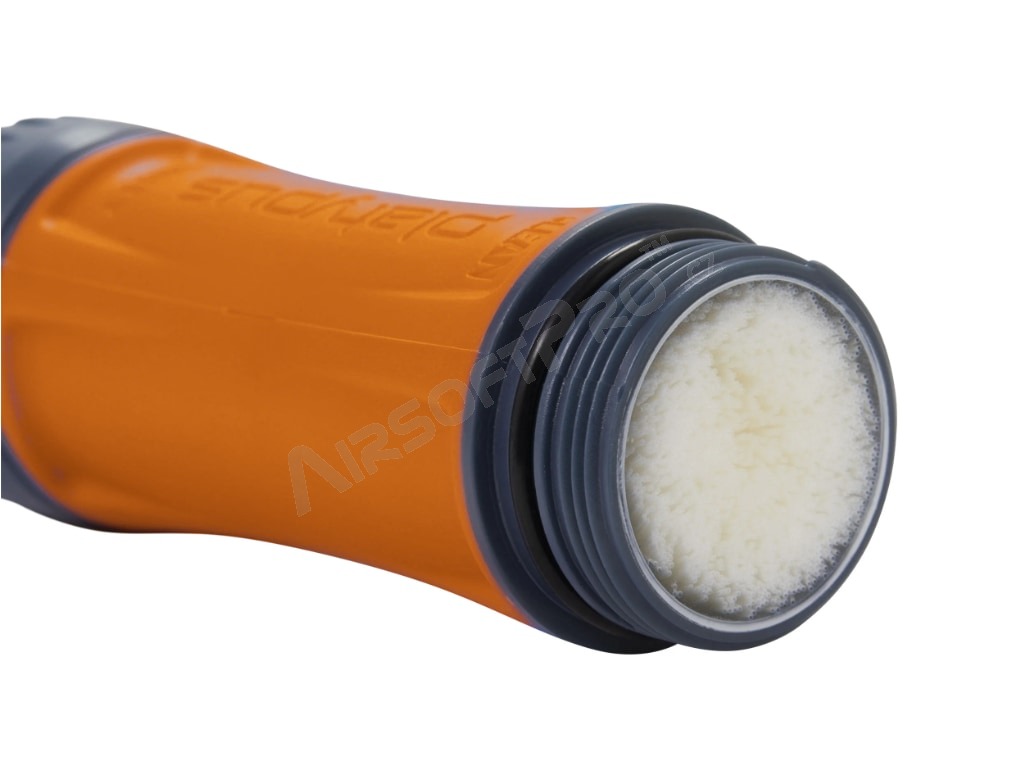

- Hollow fibers filter up to 3 liters per minute with normal squeeze pressure or 1.75 liters per minute in a gravity setup.
Easy Cleaning
- Easily shake-to-clean the system or backflush it to keep the water flowing fast throughout your trip.
Safe & Effective
- Each microfilter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa. This includes Giardia, Cryptosporidium, E. coli, Salmonella and Cholera.
Integrity Test
- Unlike other squeeze filters, easily determine if your filter has been compromised and is unsafe to use in the event of a fall or freezing.

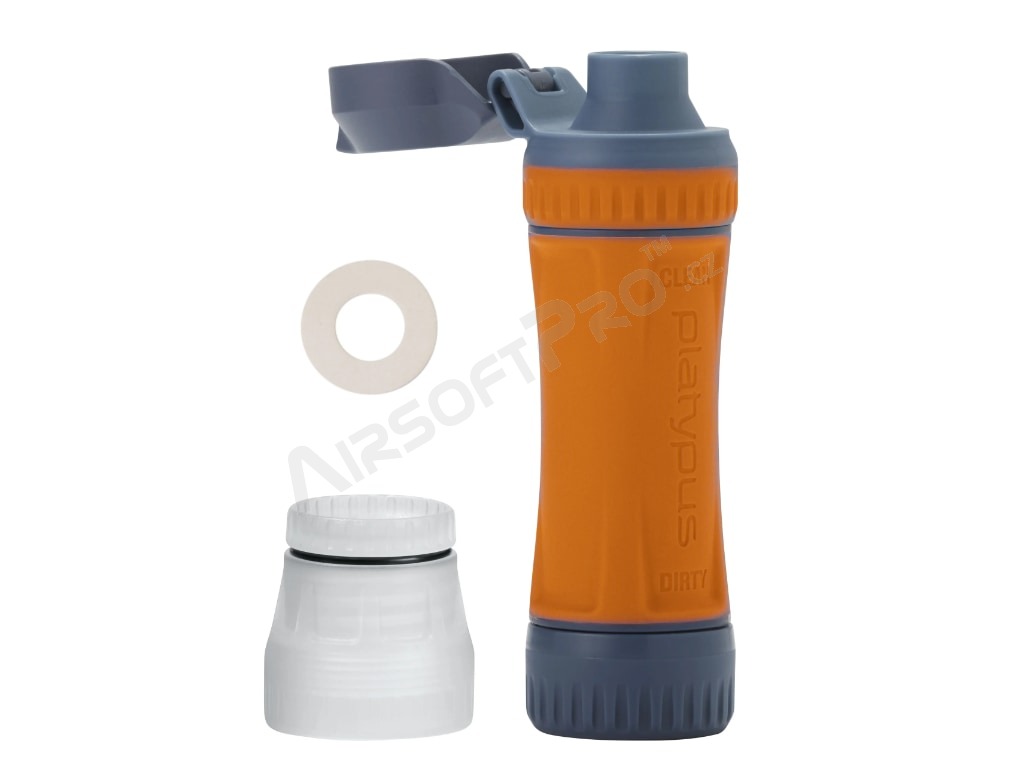

Comes with QuickDraw Filter, dirty-side cap, ConnectCap™ with cover, DrinkCap, and backflush washer.
PARAMETERS
- Weight: 69 g
- Height: 5 cm
- Length: 12.7 cm
- Filter media: Hollow Fiber
- Filter pore size: 0.2 microns
- Flow: 3 liters per min
- Cartridge life: 1000 liters
- Materials: Hollow Fiber, Plastic
